Features
- Choice of 100mm or 125mm frame (125mm frame accepts all types of screen doors without the need for an add-on build-out)
- Perimeter seals provide an effective barrier to wind and rain
- The door leaf features a chamfered exterior profile for added style and reduced build-up of dust (compared to a flat profile)
- Matching sidelights and highlights
- Colonial and Hamptons style glazing bar designs possible
- Optional multi-point lever compression lock offers superior security while ensuring optimal compression between the door and weather seals
- Aluminium frame-only products available to accommodate third-party supplied timber door(s)
- 7 year 'peace of mind’ guarantee
Explore our standard size range and possible configurations to determine the most appropriate door for your home.
![](/sites/default/files/2020-05/hinged-door-single-no-screen-1.jpg)
![](/sites/default/files/2020-05/hinged-door-double-no-screen-2.jpg)
![](/sites/default/files/2020-05/hinged-door-single-with-screen-3.jpg)
![](/sites/default/files/2020-05/hinged-door-double-with-screen-4.jpg)
![](/sites/default/files/2020-05/product-colour-tile-1a.jpg)
Explore our selection of standard anodised finishes and powder coat colours to decide what best suits your colour scheme.
![](/sites/default/files/2020-05/zoomed-crimsafe-screen-2a.jpg)
Our matching range of window and door screens allow you to choose the level of protection you want for your home.
![](/sites/default/files/2020-05/product-glass-tile-3a.jpg)
Address such issues as heat, noise, safety, security, glare and fading - after all, Your Home, Your Glass.
![](/sites/default/files/2020-05/edit%20hinged_door_hardware_black-1.jpg)
![](/sites/default/files/2020-05/edit%20hinged_door_hardware_satin_chorme-2.jpg)
![](/sites/default/files/2020-05/edit%20hinged_door_hardware_white-3.jpg)
![residential hinged](/sites/default/files/2020-04/residential-hinged.jpg)
![](/sites/default/files/2020-04/residential-hinged.jpg)

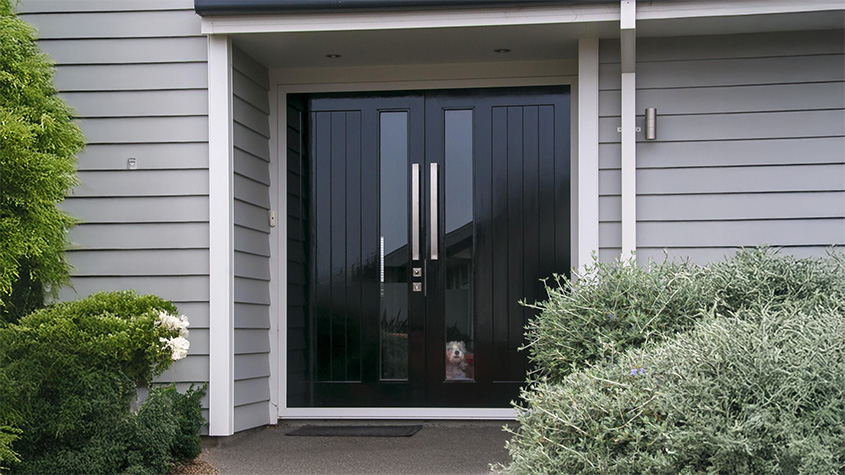

Offers an attractive and stylish choice for your main entry, balcony, veranda and/or exterior laundry doors. Aluminium construction ensures minimal maintenance (compared to timber doors) while a single hinged door configuration is the perfect substitute for a sliding door where space is restricted. Customise your door to include a decorative glass or glazing bar design.

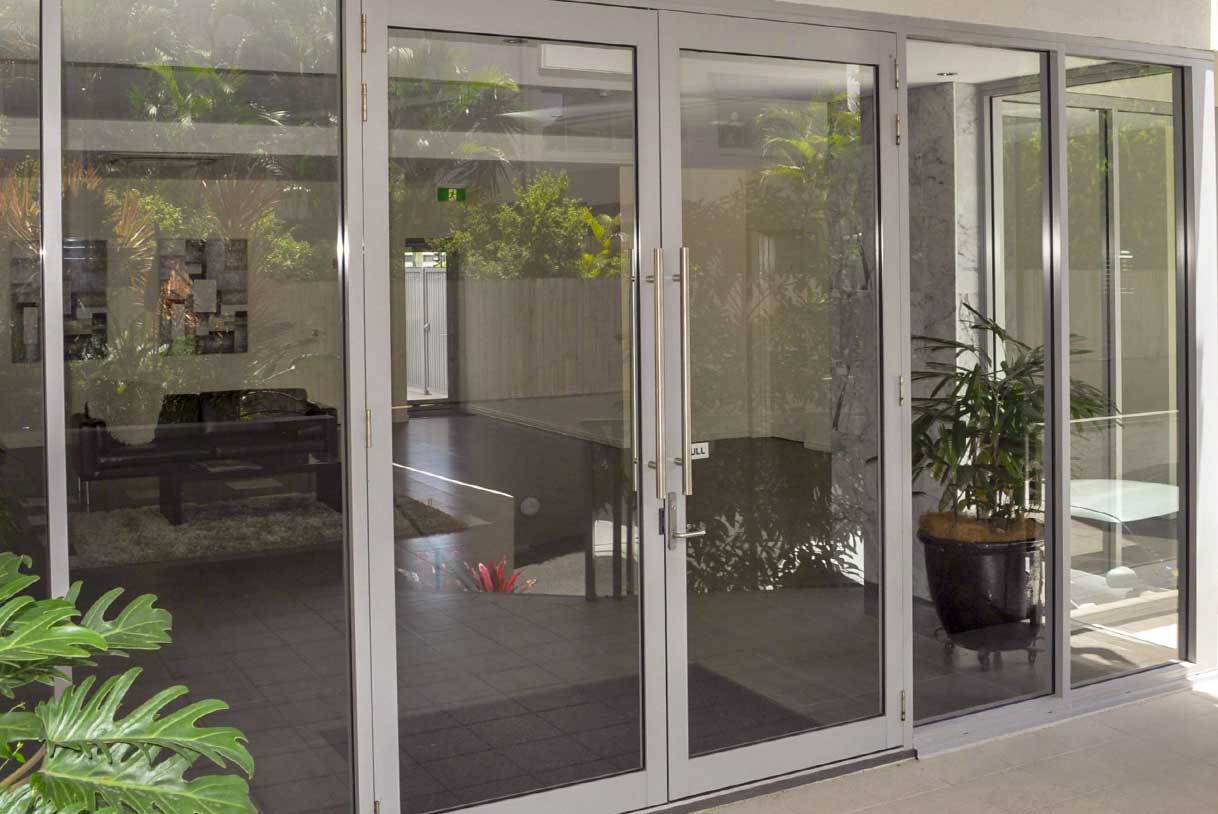

A practical and sturdy solution for accommodating a wider range of glass thicknesses, sizes and handle & lock combinations (compared to the 472 Series). With such versatility and proven durability, the 475 Series hinged door sets the benchmark in commercial-grade doors, ideally suited to high traffic entrances such as offices, retail outlets and unit complexes.
![commercial hinged](/sites/default/files/2020-04/commercial-hinged.jpg)
![commercial hinged](/sites/default/files/2020-04/commercial-hinged.jpg)
Series Comparison
472 Series Hinged | 475 Series Hinged | |
---|---|---|
Recommended Application | Housing | Low rise apartment, commercial & retail applications |
Perimeter Frame Options | • 101mm (Inwards or outwards opening)
• 125mm (inward opening doors / outward opening screen) |
101mm & 152mm |
AS 1428 (DA) Compliant Sill / Threshold | No | • 101mm - 475-008
• 152mm - 675-005 or 675-036 |
Screening | Fly, barrier & Crimsafe screens to 125mm frame only | Fly & Crimsafe outwards opening screens in retro-fit frame |
Max. Water Penetration | • 150 Pa. - Standard sill
• 450 Pa. - Outward opening configuration with sub-sill |
200 Pa. using 475-021 threshold with sub-sill ¹ |
Glazing | • Single glazed - up to 6.38mm
• Double glazed (IGU) - 20mm |
• Up to 11.52mm -
475-200 Series
• Up to 15mm - 475-300 Series • Up to 30.52mm - 476-200 Series |
Max. Size. | • Single Door - 2400mm (h) x 950mm (w) ²
• Double Door - 2400mm (h) x 1810mm (w) ² |
2700mm (h) x 1000mm (w) ³ |
Energy Ratings Available | Yes | Yes |
Max. Acoustic Rating ⁴ | Rw 31 | Rw 35 |
Bushfire Attack Level | Tested and certified to BAL-40 ⁴ | No |
Handle/ Lock Options | Lever handle with optional multi-point locking | Dependent on application, consult your G.James representative |
1 No test report available for this result. This rating is a conservative estimate based on previous testing experience and outcomes.
2 Maximum size using 4 mm toughened. Due to weight limitations, these sizes may be reduced if a thicker glass is specified.
3 Based on the 475-300 Series. Max. sizes using 475-200 are 2400 mm and 2700 mm respectively.
4 This is the maximum rating for this product and may require special construction/installation to achieve this result. Consult your G.James representative to discuss your specific requirements.
Notes: The above details are intended as a guide only. Contact your G.James representative should your requirements differ to, and/or exceed these specifications.
